Welcome … For 20 years I have been designing Adirondack style outdoor furniture, and selling the plans online. All 23 plans are now only available in two downloadable formats shown on the right. I have discontinued the Mailed format due to recent changes in the Canada Post mailing process. Any printed patterns left are in my Etsy Shop. Please browse through the plan pages to select the styles you would like. Add them to your cart and pay securely with Paypal, using any card. All plans are sold in USD. Thanks for looking ! Phil Barley

The Barley Harvest

The Barley Harvest

The Barley Harvest

Mailed Full Size Patterns

Sorry, but I no longer sell Mailed Patterns. The same patterns are available in Digital PDF, for you to download and have printed full size locally. I appreciate your business since 2001, and look forward to selling you digital plans.

The Barley Harvest

Digital PDF Full Size Patterns

All plans are available in downloadable PDF format that will print the same FULL SIZE patterns as the mailed version, at most local print shops with a 24” (60cm) wide plotter. If you are purchasing multiple plans, it is best to have a few done together, to save set up fees. Plotters are usually available at Office Depot, Staples, FedEx, UPS or Kinkos. The PDF file is not pass code protected for printing. If the printer has any issues, your memory stick can be input directly into the plotter. The PDF is protected against editing, and may not work in some online printing submissions. These Digital PDF files are not transferable to DWG or DXF, for CNC programs. You will receive an email with the instructions and pattern links within 24 hours of ordering. Please check your SPAM, TRASH or JUNK folders for the subject line Adirondack Plans, if you don’t see the email in your in-box. All instructions are produced in PDF, with materials list and quantities in standard and metric dimensions. All steps are accompanied by expandable colour images that will open in a new window to 4”x6” (10cmx15cm), for a closer view. Unfortunately a few older plans have static images. Download Adobe Reader to expand the text size. POLICY: All sales are final once I have emailed the pattern PDF and instructions.

The Barley Harvest

DWG files for CNC routers

All plans are available in DWG format that can be imported into CNC applications and converted by your CNC software. You will be emailed the assembly instructions and DWG file, within 24 hours of payment. Clicking the icons will auto download the files. Most plan pattern quantities are laid out vertically, on a 4’x6’ (122cmx183cm) bed size. Each plan page description indicates the minimum bed size needed to lay out the longest parts. Most will fit diagonally on a 1000mm x 1000mm or 30-inch square CNC bed. If necessary, you will just have to separate them from the file and angle them accordingly, corner to corner. Every CNC set up is different and you will need to verify the layout in relation to your CNC parameters and tooling, for clearances. Be sure to visit the Video page, to view my adult chair on a CNC, by Laguna & CAMaster.

Here’s a video from Chris Larsen of fineplyfurniture.com , showing his dowel inset process to laminate the wider parts for the Folding Chair file. Chris sells DIY assembly kits for my Folding Chair and Beach Chair.

The Barley Harvest

Videos

View this post on Instagram

A post shared by Phil Barley (@barleyharvestwoodplans)

Beach Chair assembly

Folding Chair in motion

Adult chair in plywood

Adult chair in pine stock

Nana’s Rocker in motion

Tall Chair assembly

Building the footrest

Tall Chair in plywood

Family Rocking

Bar Chairs and Table

Cutting Tall Chair leg template

Back slats on the taper jig

Please visit my Pinterest page, ‘My Customer’s Handywork’ for more images like these …

Gallery

The Barley Harvest

2016 photo courtesy of James Tinus, Wrawby, Lincolnshire, UK

Twenty years ago, I built plansinwood.com with a friends help, in hopes of selling plans for items I had produced over the years. I now sell those original downloadable plans for games, clocks, and tables, specifically through Bear Woods Supply under The Barley Harvest name. This new 20th anniversary site, only sells my Adirondack style plans, in digital format. Since 2001, I have expanded my sales channel to Etsy, giving more exposure to my products, with over 400 positive reviews. Customer images from emails I have received over the years, are linked to my Pinterest page on my Gallery tab on this site, as well as on my Facebook pages and Instagram feed. Please take a look at their comments and work. I am retired now, living in Muskoka, Ontario, Canada. I built an efficient, small shop in the garage in 2016, where I have produced my most recent best selling Tall Chair & Table plans, the Arm Chair and Nana’s Rocker. Thank you for supporting this little business for 20 years, and I look forward to many more ! Have fun making sawdust, regards Phil

Adirondack Style Furniture Plans

The Barley Harvest

Lower Height Chairs

DWG FILE $12

DIGITAL PDF $8

All adult size chairs on this page are 8” off the ground, at the lowest seat slat. The width between the front legs is 19”, but the plans can be adapted to make the seat slats wider, and lengthening all horizontal patterns from the centre.

Click on the titles below for a description of each format

• Finished dimensions - 32 1/2"W x 37"D x 38"H (82.6cmW x 94cmD x 96.5cmH) • 7 ½” ( 19cm) wide arms • Includes alternate back slat patterns for Scalloped and Picket Fence style • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock

• Finished dimensions - 32 1/2"W x 37"D x 38"H (82.6cmW x 94cmD x 96.5cmH) • 7 ½” ( 19cm) wide arms • Folds to 12” and hangs on the wall • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” and 1 ¼” stock, but other sizes will work • Custom plastic washers keep the parts from sticking, and the wood from wearing • VIDEO of how the chair folds

DIGITAL PDF $8

DWG FILE $12

• Finished dimensions - 67"W x 37"D x 38"H (170.2cmW x 94cmD x 96.5cmH) • Includes Stationary Adirondack Chair plans as well as Adirondack Settee Kit to join 2 chairs • The kit will not work with the Folding Chair plan • Will hold a market umbrella for shade in a sunny location

DIGITAL PDF $9

DWG FILE $13

STATIONARY

ADIRONDACK SETTEE

ADIRONDACK CHAIR PLANS

FOLDING

ADIRONDACK CHAIR PLANS

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER

• Finished dimensions - 19 1/4"W x 32"D x 35 1/2"H (50cmW x 81cmD x 90cmH) • Great chair for camping and ball games. The seat and back pull apart for storage in your trunk • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock, and poly wood will work • VIDEO of how the chair works • DIY assembly kits are available at www.fineplyfurniture.com • Windward Design Group sells my modified chair in polymer…click Where to Buy on their site

DIGITAL PDF $8

DWG FILE $10

2 PIECE

BEACH CHAIR PLANS

PLANS

The Barley Harvest

Upright Chairs

The Barley Harvest

DWG FILE $12

DIGITAL PDF $8

Click on the titles below for a description of each format

• Finished dimensions - 34 1/2"W x 36"D x 46"H (87.7cmW x 91.5cmD x 116.8cmH) • 15" (38.1 cm) high at the lowest seat slat • 7 ½” ( 19cm) wide arms • 21" (53.4 cm) seat slats • 19 1/2" (49.5cm) between the arms • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock, but other sizes will work • A ROCKING CHAIR CONVERSION KIT for the Grandpa Chair, is available on the Accessories page

• Finished dimensions - 32 1/2" W, 36" D x 45 1/4"H (82.55cm W x 91.5cmD x 114.9cm H) • 15" (38.1 cm) high at the lowest seat slat • 7 ½” ( 19cm) wide arms • 19" (48.3cm) wide seat • 17 3/4" (45cm) between the arms • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock, but other sizes will work

DIGITAL PDF $8

DWG FILE $12

DIGITAL PDF $8

DWG FILE $12

GRANDPA

ARM CHAIR PLANS

ADIRONDACK CHAIR PLANS

GRANDMA

• Finished dimensions - 72"W x 36"D x 46.5"H (182.8cmW x 91.5cmD x 118.1cmH) • Convertible to a 60” (152.4cm) wide Love Seat, with a 47.5"(120.5cm) wide seat • 17.5" (44.5 cm) high seat at the lowest slat • Windward Pine and Inukshuk image, are cut-out patterns included as a full size PDF • Removable back for easier storage • Digital pattern prints 24” x 76” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock, but other sizes will work

DIGITAL PDF $8

DWG FILE $12

FAMILY BENCH PLANS

ADIRONDACK CHAIR PLANS

ADIRONDACK

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER

• Finished dimensions - 26 3/4" W, 26" D x 39"H (68cm W x 66cmD x 99cm H) • 19" (48.3cm) wide seat • 15 1/2" (39.4cm) high seat at the lowest slat • 25 1/2" (64.8cm) high arms, allowing them to fit under Patio Set dining table shown • 39" (99cm) high at the centre back slat • 4 3/8" (11.1cm) wide arms will still hold a large coffee mug • 17 3/4" (45cm) between the arms • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend ¾” stock, but other sizes will work

Child Size Chairs

The Barley Harvest

Click on the titles below for a description of each format

DIGITAL PDF $8

DWG FILE $12

Y O U TH

JUN IOR

DIMENSIONS

YOUTH - 23 9/16"W x 29 3/4"D x 28 1/2"H (60cmW x 75.6cmD x 72.4cmH)

JUNIOR - 20" 1/2W x 23"D x 24 1/2"H (52.1cmW x 58.5cmD x 62.3cmH)

CHILD - 15 3/4"W x 19 7/8"D x 19"H (40cmW x 50.5cmD x 48.3cmH)

DIGITAL PDF $7

DIGITAL PDF $6

DWG FILE $12

• All 3 sizes are a reduction of the Adult size chair, and use the adult images in the instructions • Digital patterns print on a 24” (61cm) wide plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 1/2” stock, but 5/8” to 3/4“ can be used as well

DIGITAL PDF $8

DWG FILE $12

YOUTH

• All 3 sizes are a reduction of the Adult size rocker • Digital patterns print on a 24” (61cm) wide plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 1/2” stock, but 5/8” to 3/4“ can be used as well

DIMENSIONS

YOUTH - 25 1/2"W x 27 1/2"D x 33 3/4"H (64.8W x 69.9cmD x 85.7cmH)

JUNIOR - 22"W x 24"D x 29 1/2"H (55.8cmW x 61cmD x 75cmH)

CHILD - 17"W x 18 1/2"D x 23"H (43cmW x 47cmD x 58.4cmH)

JUNIOR

DIGITAL PDF $7

DWG FILE $12

CHILD

DIGITAL PDF $6

DWG FILE $12

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER

CHILDREN’S ADIRONDACK ROCKER PLANS

CHILDREN’S LOW ADIRONDACK CHAIR PLANS

Rocking Chairs

The Barley Harvest

GRANDPA’S ROCKER PLANS

DIGITAL PDF $8

DWG FILE $12

• Finished dimensions - 34"W x 37"D x 45 1/2"H (86.4cmW x 94cmD x 115.5cmH) • 7 ½” ( 19cm) wide arms • Adapted from the Grandpa Chair plans and sits perpendicular to the ground • Digital pattern prints 24” x 72” (61cm x 183cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock, 1 1/4” and 1 1/2” laminated for the rocker blades • A four piece CONVERSION KIT for the Grandpa Chair, is available on the Accessories page

DWG FILE $12

• Finished dimensions - 32 1/2"W x 37"D x 38"H (82.6cmW x 94cmD x 96.5cmH) • 4 5/8” (11.8cm) wide arms • Adapted from the Tall Chair plans • Digital pattern prints 24” x 60” (61cm x 152cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock, and 1 1/2” stock for the rocker blades and legs • A three piece CONVERSION KIT for the Tall Chair plans, is available on the Accessories page

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER

Click on the titles below for a description of each format

DIGITAL PDF $8

NANA’S ROCKER PLANS

The Barley Harvest

Tall Chairs and Tables

Click on the titles below for a description of each format

DWG FILE $12

DIGITAL PDF $9

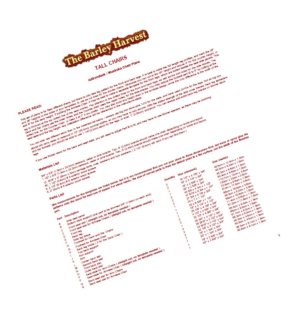

• THIS PLAN INCLUDES 6 CHAIR OPTIONS - 3 HEIGHTS WITH OR WITHOUT ARMS • Front and back leg patterns are marked for 3 heights with matching bolt locations • Finished dimensions - all seat heights are measured to the top of the front curve, seat is 2" lower • 36" Deck Chair... 28"W x 31 1/2"D x 57"H (71.1cmW x 80cmD x 144.8cmH) • 30" Bar Chair... 28"W x 30 1/2"D x 51 1/2"H (71.1cmW x 77cmD x 130.8cmH) • 26" Counter Chair... 28"W x 27"D x 47 1/2"H (71.1cmW x 68.6cmD x 120.7cmH) • 4 5/8” ( 19cm) wide arms • All backs are 23"W x 24"H (58.4cmW x 61cmH) • Armed chairs seats are 19"W x 18"D (48.3cmW x 45.7cmH) • Armless chair seats are 20"W x 18"D (50.8cmW x 45.7cmH) • Armless BIG BOY seat is 23"W x 18"D with the legs installed on the outside of the seat • Digital pattern prints 24” x 72” (61cm x 183cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock and 1 1/2” for the legs, footrest and cross braces • A NANA’S ROCKER CONVERSION KIT for the Tall Chair plan, is available on the Accessories page

ADIRONDACK TALL CHAIR PLANS

DWG FILE $12

• THIS PLAN INCLUDES 6 TABLE OPTIONS - 24" (61cm) or 36" (91cm) DECK, BAR AND COUNTER TABLES • The leg patterns are marked for all 3 heights....you just cut them to the height you want. They are marked with all necessary bolt hole locations, for easy assembly • Deck Table... 47" high ( 119.4cm) • Bar Table... 41" high (104cm) • Counter Table... 37" high (94cm) • Instructions include 58 images that expand to 6"x10" (15.2cm 25.4cm) for closer views. • Digital pattern prints 24” x 72” (61cm x 183cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock and 1 1/2” for the legs, footrest and cross braces

ADIRONDACK TALL TABLE PLANS

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER

DIGITAL PDF $9

DIGITAL TALL CHAIR & TABLE PLAN PACKAGE $12

DWG TALL CHAIR & TABLE PLAN PACKAGE $18

The Barley Harvest

Accessories

DIGITAL PDF $7

DWG FILE $10

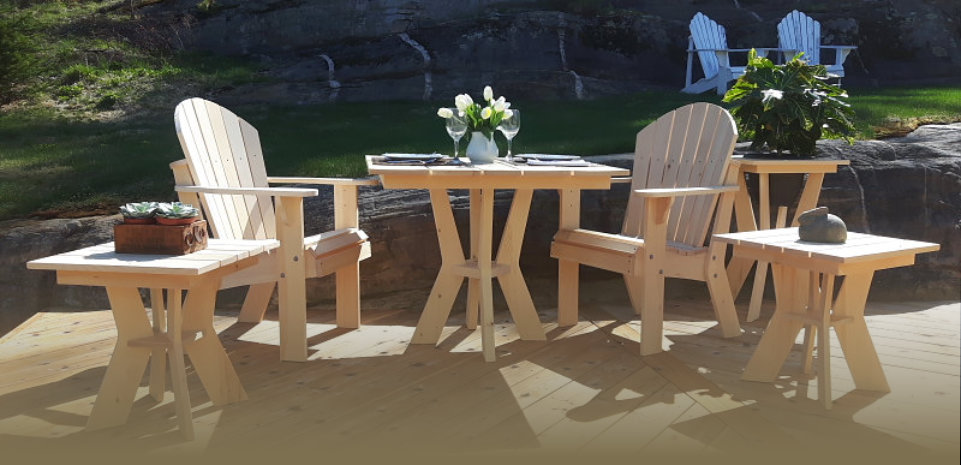

• Dining Table - 29" (73.7cm) high, 36" x 36" (91.4cm x 91.4cm) • 1 1/2" (3.8cm) pedestals made from a 2” x 10” • Side Table - 20" x 20" x 20" (50.8cm x 50.8cm x 50.8cm) high has 3/4" (1.9cm)pedestals • Planter - 29" (73.7cm) high with a 3/4" (1.9cm) pedestal • Two Dining Tables together will seat 6 Arm Chairs or Grandma Chairs • Table tops have ¼” spaces between the slats for drainage. • Digital pattern prints 24x36 (61cmx91cm) on a plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” and 1 ½” stock • Add the ARM CHAIR PLAN (not included in this package) to the patio set

DIGITAL PDF $5

DWG FILE $10

THREE PIECE PATIO SET PLANS

ADIRONDACK FOLDING FOOTSTOOL

DIGITAL PDF $5

DWG FILE $10

• Finished dimensions - 19"W x 23 1/2"D x 13"H (48.3cmW x 59.7cmD x 33.0cmH) • Can be used as a footstool or spare seating, in the upright position • Becomes a lounge extension against the regular low Adirondack or Folding Adirondack • The back leg angles, and the front legs fold under and can be locked in position • Can be made wider and taller to match the upright chair plans. • Digital pattern prints 24” x 12” (61cm x 30.1cm) • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock

• Finished dimensions - 18 1/4"W x 30"L x 16"H • Digital pattern prints 24”x30” (61cmx76cm) on a plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock

ADIRONDACK TABLE PLANS

DIGITAL PDF $5

DWG FILE $10

• Finished dimensions - 34"W x 37"D x 45 1/2"H (86.4cmW x 94cmD x 115.5cmH) • Converts the Grandpa Chair plans to the Grandpa Rocker • Only 4 parts included in this plan…the rest of the parts are included with the Grandpa Chair plan • Digital pattern prints 24”x36” (61cmx92cm) on a plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” stock, 1 1/4” and 1 1/2” laminated for the rocker blades

GRANDPA’S ROCKER CONVERSION KIT PLANS

NANA’S ROCKER CONVERSION KIT PLANS

DIGITAL PDF $5

DWG FILE $10

• Finished dimensions - 28"W x 31 1/2"D x 34 3/4"H (71.1cmW x 80cmD x 88cmH) • The leg patterns can be cut to 3 heights for Customers with longer legs • Converts the Tall Chair plans to the Nana’s Rocker • Only 3 parts included in this plan…the rest of the parts are included with the Tall Chair plan • Digital pattern prints 24”x32” (61cm x 81.3cm) on a plotter • DWG parts are laid out on a 4’ x 6’ (20.3cm x 182.9cm) bed • Emailed instructions recommend 3/4” and 1 1/2” stock

OTHER PLANS AVAILABLE

LOW UPRIGHT TALL CHILDREN’S ROCKERS BEACH OTHER
